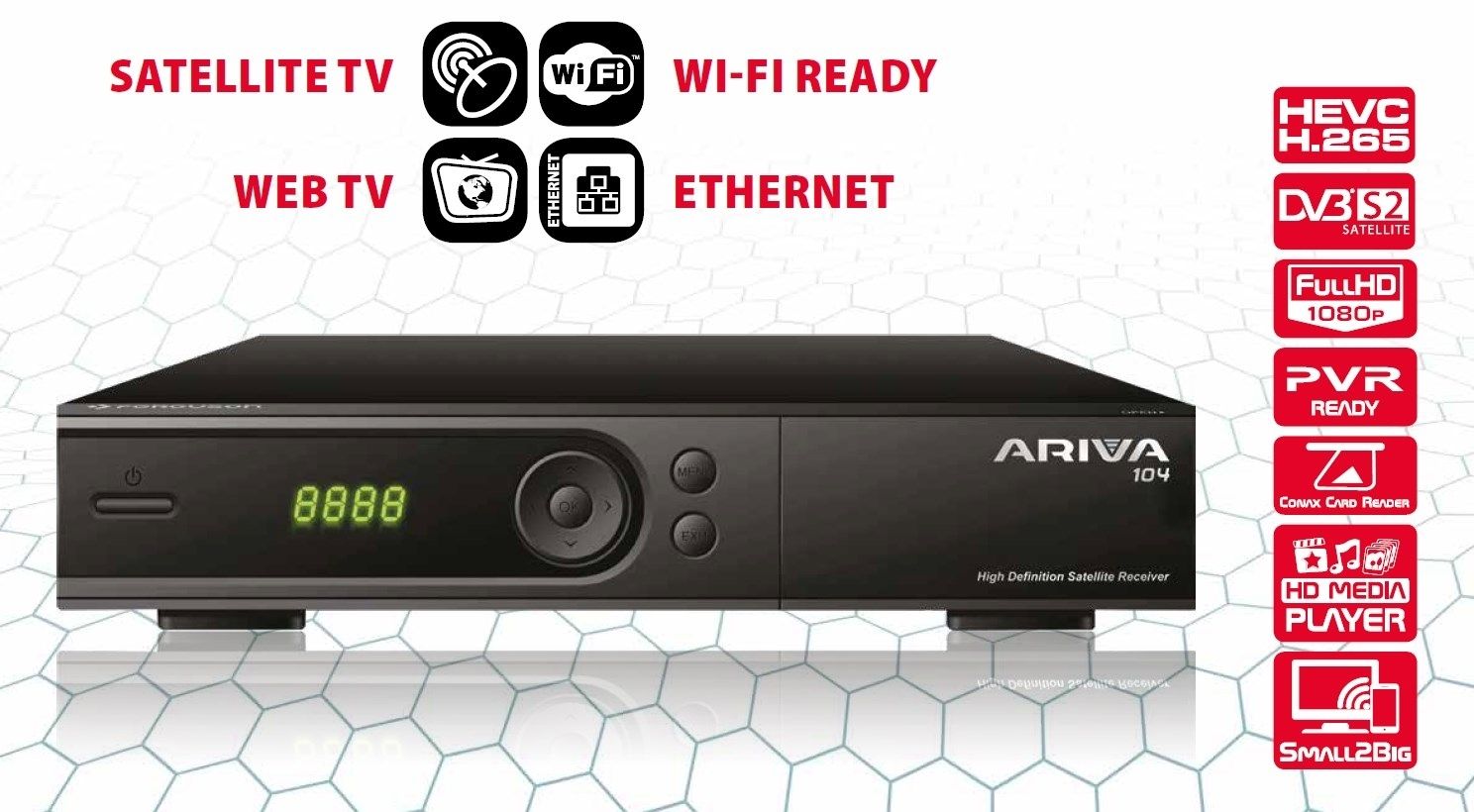

Ferguson Ariva 104 FullHD Receiver

Features:

• Empfangen Sie hochauflösende Full HD-Kanäle
• Unterstützung für die Standards MPEG-2, MPEG-4, AVC/H.264, HEVC/H.265
• Unterstützung für SD-, HD- und FullHD-Videoinhalte
• Unterstützung von Videotext und Untertiteln
• Netzwerkdienste (Filme, Radio usw.)
• MPEG-1-Layer-Decodierung I/II, PCM-Downmix, IEC958 S/PDIF,Dolby 5.1-Kanal, Dolby-Downmix 2-Kanal, Dolby Prologic 2
• Unterstützung für DiSEqC 1.2, 13/18V, 0/22K, LNB
• Kartenleser für Pay-TV

Main Chipset:

• CPU frequency: 554MHz
• Flash Memory: 1PC 4Mbyte/8Mbyte SPI FLASH
• SDRAM Memory: 1PC 128Mbyte DDR3

DVB-S/S2 Tuner:

• Tuner Type: M3031 on board
• Frequency Range: 950~2150MHz
• Input Impedance: 75Ω
• LNB Power and Polarization: Vertical 13VDC; Horizontal 18VDC @ 400mA (max) 22KHz±0.4KHz (0.8V±0.2V) tone, Overload Protection
• Input Level Range: -65dBm ~ -25dBm
• Loop-Through: Signal loop through

DVB-S/S2 Channel Decoder:

• DVBS Demod Standard: DVB-S, DVB-S2
• DVBS Demodulation: QPSK, 8PSK, 16APSK, 32APSK
• DVBS Symbol Rate: 2 ~ 90MSPS (Code Rate 1/2)
• DVBS Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8 for DVBS QPSK; 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 for DVBS2 QPSK; 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVBS2 8PSK; 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 for DVBS2 16APSK; 3/4, 4/5, 5/6, 8/9, 9/10 for DVBS2 32APSK

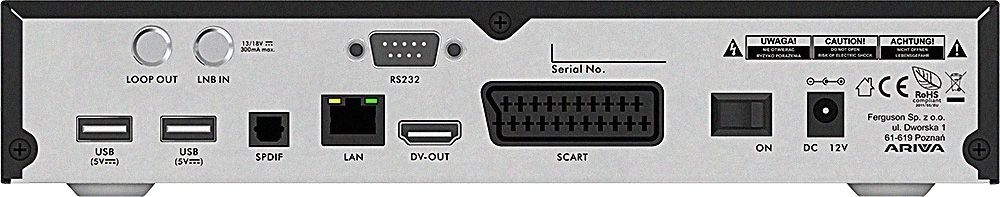

Hardware Features:

• LNB IN: IEC 169-24, F-Type, Female
• TV SCART: 21 PIN Female, CVBS, Audio L/R
• S/PDIF: Coaxial · Ethernet: RJ45 10/100M Ethernet interface
• USB: 2 * USB 2.0
• DV-Out: 19 PIN Female HDMI 1.3b

TS Demux:

• Demultiplexer: MPEG2 ISO/IEC 13818-1
• Input Bit Rate: Max 100Mbit/s

Video Decoding:

• Video Decoding: MPEG2 ISO/IEC 13818-2 MP@ML, H.264 (MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@ HL, HEVC main profile@level 4.1, main 10 profile @level4.1
• Aspect Ratio: 4:3, 16:9
• Video Resolution: 1920×1080, 1280×720, 720×480, 720×576

Audio Decoding:

• Audio Decode: MPEG-1 layerI/II, PCM downmix, IEC958 S/PDIF, Dolby 5.1 channel, Dolby downmix 2 channel, Dolby Prologic 2
• Sound Mode: LEFT/RIGHT/STEREO/MONO
• Sampling Frequency: 32KHz, 44.1KHz, 48KHz

AV Output:

• Video Bandwidth: SD: 5.0MHz(-3dB), HD: 30MHz(-3dB)
• Video Impedance: 75Ω
• Video Voltage Level: 1.0 Vp-p
• Audio Frequency Range: 20~20KHz
• Audio Impedance: 600Ω
• Audio Voltage Level: 2V rms (5.6Vp-p)

Environment:

• Input Voltage: DC 12V/1A
• Consumption: Max 12W
• Storage Temperature: -40°~60°
• Operating temperature: -5°~45°
• Humidity: <95%
• Net Weight: 530g
